€2,600,000

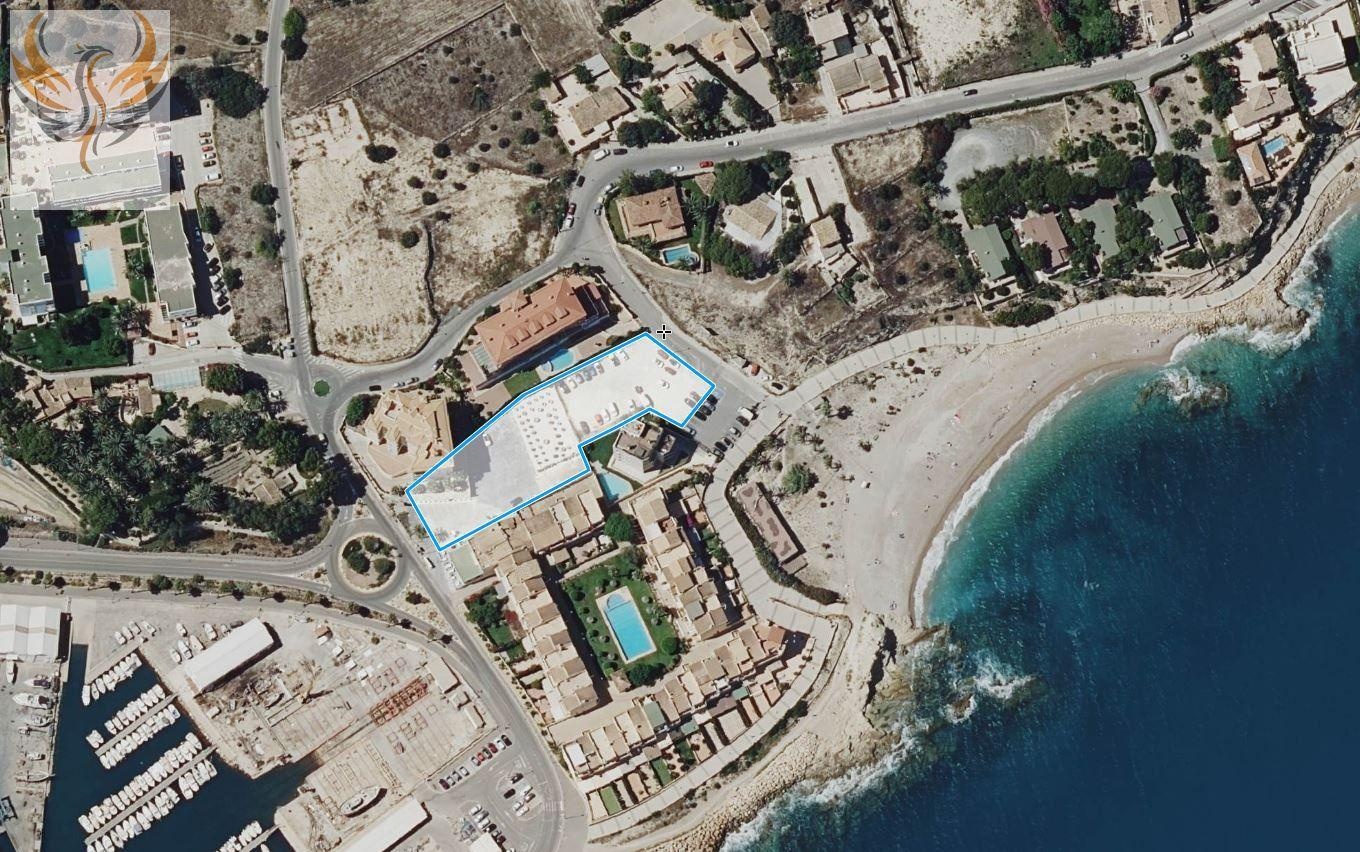

Urban Plot on the FIRST LINE of the Beach. Villajoyosa.
- Land classified as URBAN; and located in the
- INTENSIVE TOURIST planning zone, “Alcocó” subzone, code “TI-8”
- Type of Building: Open Building (EA), grade 3.
- Net buildability index: 0.70 m2t/m2s.
- Occupancy: 30% in residential use; 45% in tertiary-industrial use.
- Minimum plot: 600 m2.
- Maximum height: IV floors (ground floor plus 3 upper floors). Minimum height: III floors.
- Setbacks: 4 m.; and separation of 8 m. between buildings.
- Parking provision is mandatory.
- Uses: Due to its destination for public protection housing (VPP), the Global characteristic use is Residential, at level “b”. Level “a” is admitted in any situation
Basic Project: Cadastral Ref. 3062212YH4636S0001RE 20 PUBLIC PROTECTION HOUSES WITH STORAGE ROOMS AND GARAGES Building for 20 homes with a constructed area of multi-family housing of 1,446.53 m² and a basement and semi-basement area for storage rooms and garages of 2,127.45 m². surface.
REGULATIONS subzone Alcocó, street TI-8 BASIC PROJECT
Type of building: open building, grade 3. ________________________________ COMPLIANT
Net buildability index: 0.70m2t/m2s. ____________________________________ MEETS
Occupancy: 30% residential use. __________________________________________ MEETS
Minimum plot: 600m2s____________________________________________________ COMPLIANT
Maximum height. IV floors (ground floor plus three upper floors). ___________________________ MEETS
Setbacks: 4m and 8m separation between buildings. _____________________________ MEETS
Parking provision is mandatory. ___________________________________ MEETS
This project complies with the Technical Building Code, satisfying the basic requirements for each of the basic requirements of structural safety, Safety in case of fire, Safety of use, Hygiene, health and environmental protection, Protection against noise and Energy savings and thermal insulation, established in article 3 of Law 38/1999, of November 5, on Building Planning. The project has chosen to adopt the technical solutions and procedures proposed in the Basic Documents of the CTE, the use of which is sufficient to prove compliance with the basic requirements imposed in the CTE.
- EHE-2008: The requirements of the Structural Concrete Instruction are complied with and its determinations are complemented with the Basic Structural Safety Documents.
- NCSE02: The parameters required by the earthquake-resistant construction standard are met and are justified in the structural memory of the execution project.
- TELECOMMUNICATIONS: R.D. Law 1/1998, of February 27 on Common Telecommunications Infrastructures
- REBT: Royal Decree 842/2002 of August 2, 2002, Low Voltage Electrotechnical Regulations.
- RITE: ROYAL DECREE 1027/2007, of July 20, which approves the Regulation of Thermal Installations in Buildings.
- RITE: ROYAL DECREE 1826/2009, of November 27, which modifies the Regulation of Thermal Installations in Buildings, approved by ROYAL DECREE 1027/2007, of July 20. The building contains 20 homes with a total buildable area of 1,446.53 m² above ground, with 50% of the covered terrace area. The basement and semi-basement floor for parking and storage rooms has an area of 2,127.45 m² and there are 51 parking spaces and 16 storage rooms.
